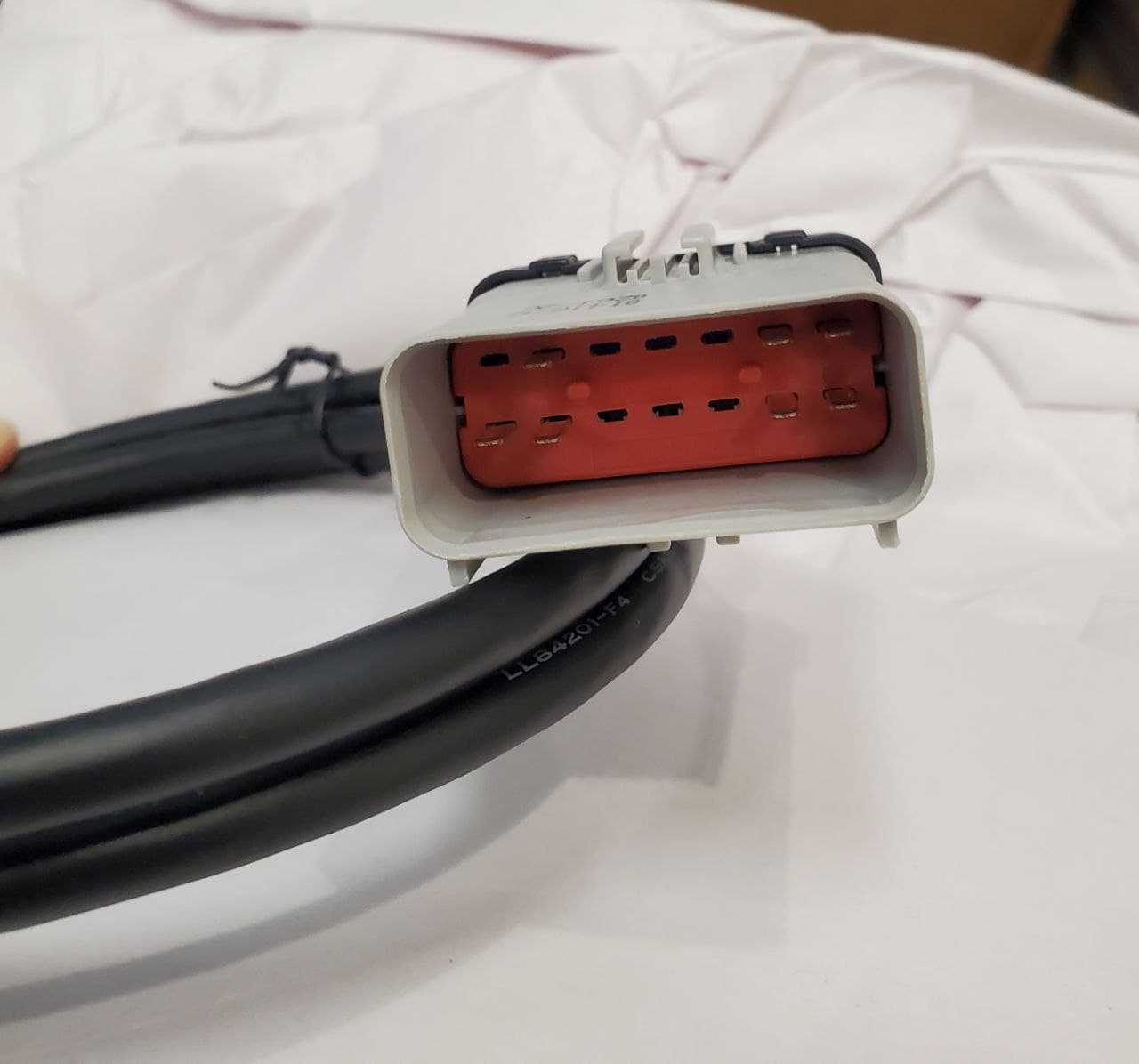

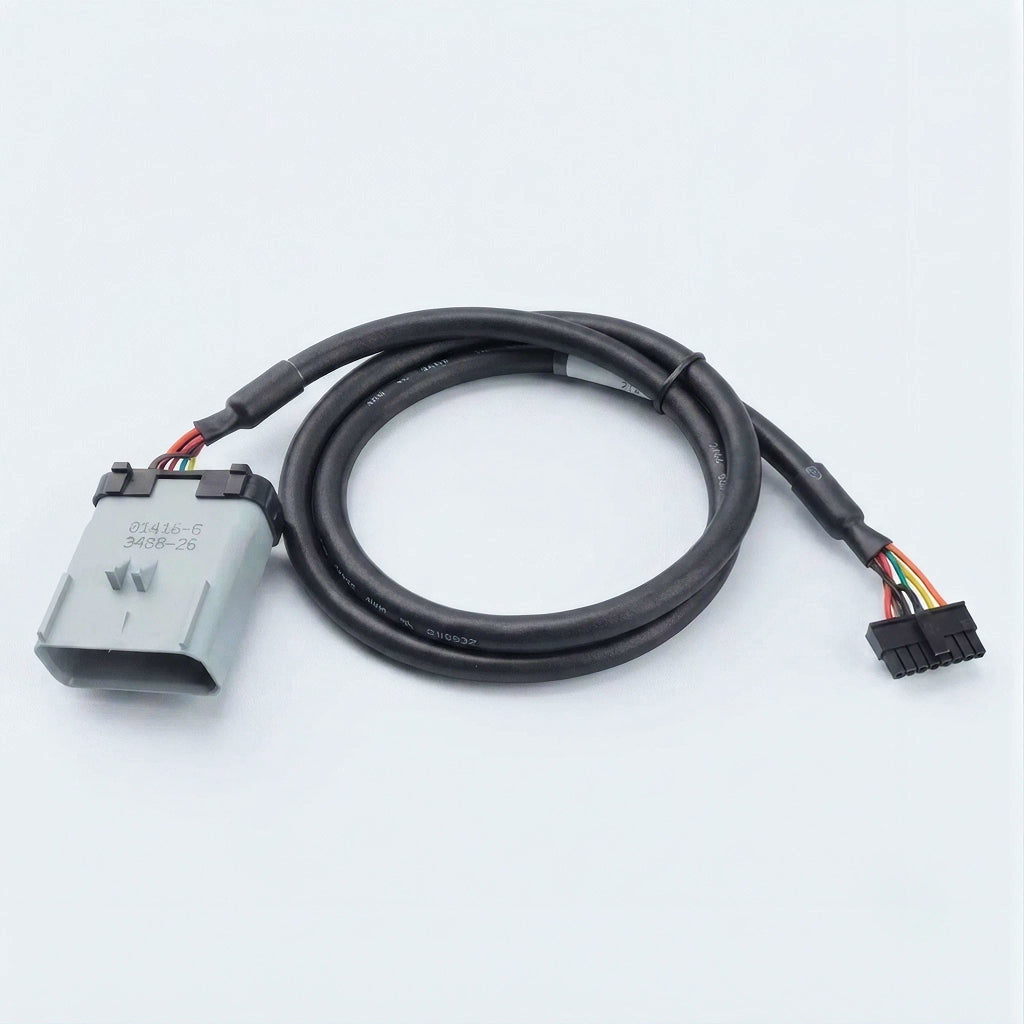

14-PIN RP1226 ELD Cable for Volvo & Mack Trucks

14-PIN RP1226 ELD Cable — Volvo, Mack & Heavy-Duty Trucks

Connect your Lucid ELD to your truck's 14-pin RP1226 diagnostic port. This replacement RP1226 cable delivers power and J1939 engine data to your ELD device, keeping you FMCSA compliant without splicing, adapters, or a trip to the shop.

Most heavy-duty trucks from model year 2018 and newer use the RP1226 14-pin connector instead of the older 9-pin or 6-pin ports. If your truck has a 14-pin port, this is the cable you need.

Why drivers choose this cable

• Plug-and-play install — connects to the RP1226 port in under a minute. No tools, no wiring, no mechanic.
• Full J1939 data — passes engine hours, odometer, VIN, and diagnostic data straight to your ELD.
• Built for the road — shielded cable and locking connector hold up to vibration, heat, and cold.
• Direct replacement — swaps in for a damaged or missing cable without changing your ELD device.

Fits trucks with a 14-pin RP1226 port, including

• Volvo VNL, VNR, VHD and next-gen VNL
• Mack Anthem, Pinnacle and Granite
• Freightliner Cascadia, M2, 108SD, 114SD (2020+)
• Kenworth and Peterbilt models equipped with RP1226

Where to find your RP1226 port

• Volvo — top of the dash, near the fuse box
• Mack — passenger-side dash, behind or under the fuse box
• Freightliner — passenger-side doghouse under the fuse box, or center overhead console

What's in the box

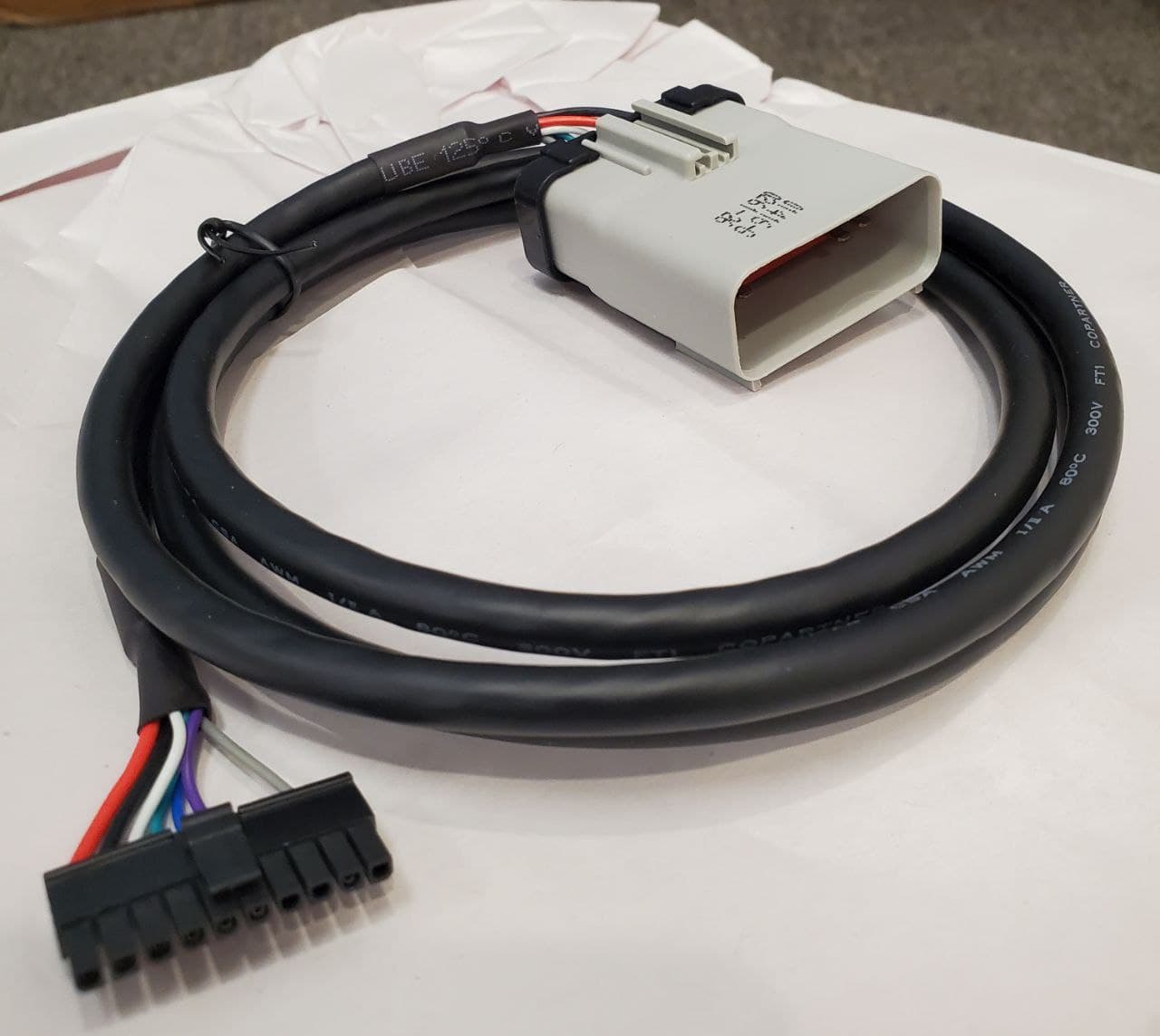

• 1 × 14-pin RP1226 to Molex ELD cable

Specifications

Frequently asked questions

Will this cable work with my truck?
If your truck has a 14-pin RP1226 diagnostic port — common on Volvo and Mack, and on most heavy-duty trucks from 2018 onward — this cable will connect. Check the port before ordering.

Do I need a mechanic to install it?
No. The RP1226 connector is keyed and locks into place by hand. Installation takes about a minute.

What's the difference between RP1226 and a 9-pin cable?
RP1226 is a 14-pin connector designed for telematics and ELD devices, so it doesn't occupy the 9-pin diagnostic port your mechanic uses. Newer Volvo and Mack trucks use RP1226 as the standard telematics connection.

Is this cable FMCSA compliant?
Yes. Paired with a registered Lucid ELD device, this cable supports full FMCSA ELD compliance.

Not sure which cable your truck takes? Contact our support team with your year, make and model and we'll confirm before you order.
